Charger Adapter

Charger case

Juyuan micro has AC / DC power chip products with relatively complete power range in the field of charger. We can provide you with PSR series of 3-12w built-in BJT power tube, PSR series of 7.5-36w built-in MOS power tube and PSR models of external MOS power tube, and provide reference design scheme of adapater / charger system with high cost performance, excellent performance and stable quality.

1、 Charger performance characteristics:

1. High precision constant current / constant voltage regulation within the full voltage range;

2. Remove optocoupler and secondary control circuit;

3. Built in transformer inductance compensation;

4. Low starting current, built-in soft start and undervoltage protection;

5. Built in leading edge blanking and over temperature protection;

6. Current limiting protection, overvoltage protection.

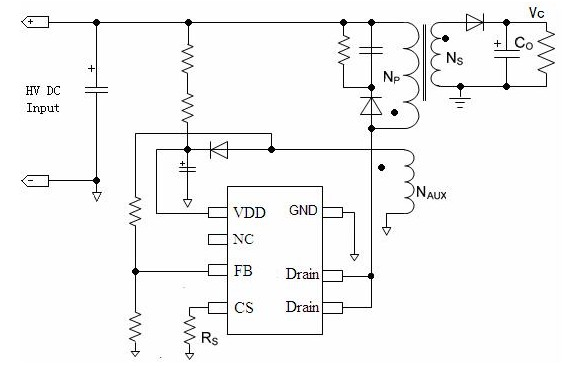

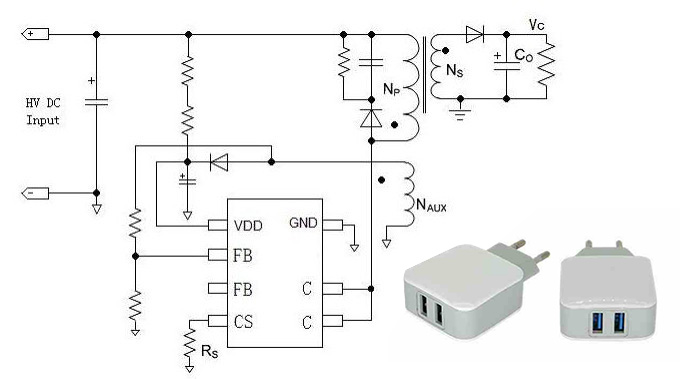

2、 Application block diagram








3、 Selection table





Product

Character

SW Voltage

VDD Operation Voltage

Power bound

Package

Note

PL3365C

CC/CV PSR Converter

800V(VCBO)

4～27V

<3W

SOP7

Charger/Adapter

PL3366C

CC/CV PSR Converter

800V(VCBO)

4～27V

<5W

SOP7

Charger/Adapter

PL3367C

CC/CV PSR Converter

700V(VCBO)

4～27V

<7.5W

SOP7

Charger/Adapter

PL3368C

CC/CV PSR Converter

700V(VCBO)

4～27V

<10W

SOP7/SOP8

Charger/Adapter

PL3369C

CC/CV PSR Converter

750V(VCBO)

4～27V

<12W

SOP7/SOP8

Charger/Adapter

PL3376C

CC/CV PSR Converter

800V(VCBO)

4～27V

<5W

SOP7

Charger/Adapter

PL3378C

CC/CV PSR Converter

700V(VCBO)

4～27V

<10W

SOP7

Charger/Adapter

PL3379C

CC/CV PSR Converter

750V(VCBO)

4～27V

<12W

SOP7

Charger/Adapter

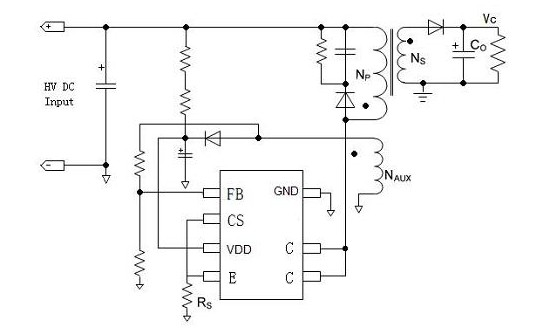

四、應用框圖
